D link DES 1024D B 24 port Fast Ethernet unmanaged switch

Specification

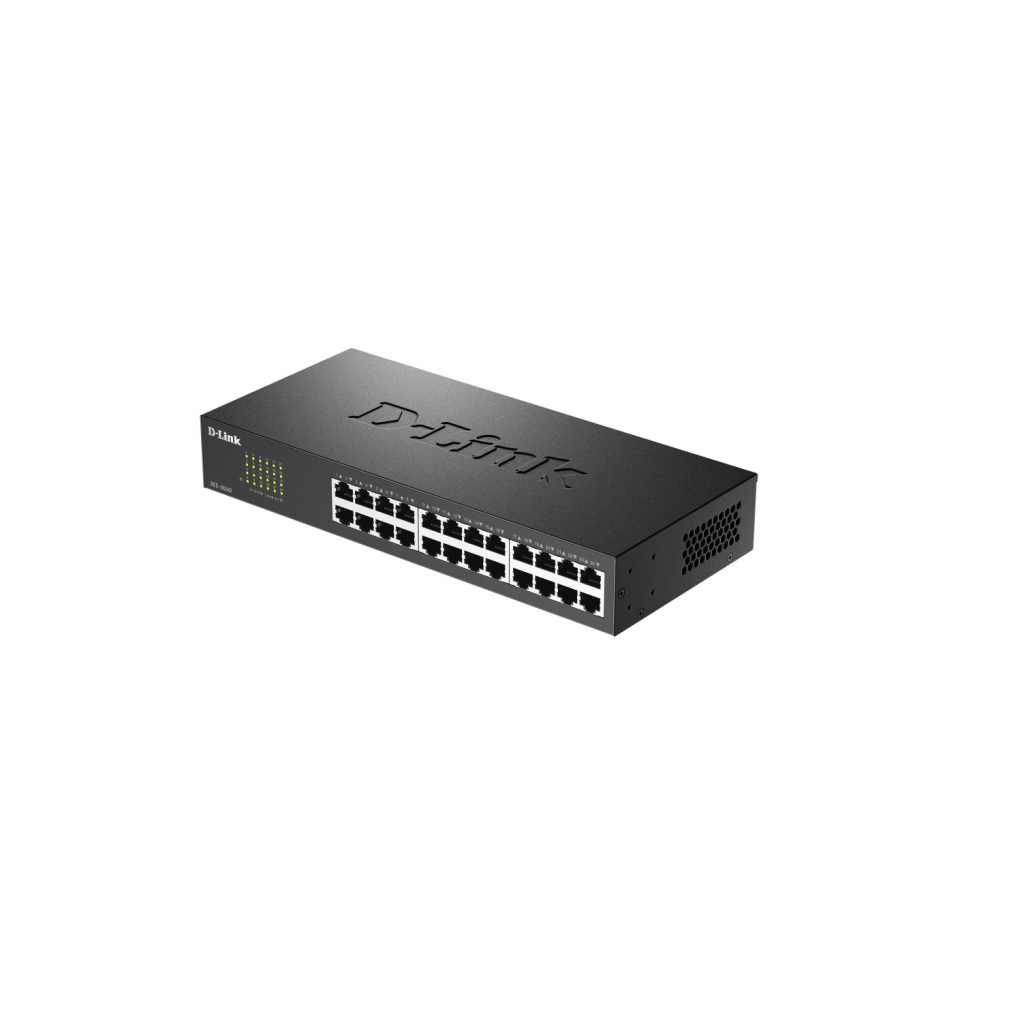

D-Link DES-1024D/B 24×10/100 Mbps Unmanaged Desktop/Rack Switch (Fanless)

Expand your wired network the simple way with a quiet, fanless 24-port Fast Ethernet switch that’s built for always-on reliability in small offices, classrooms, shops, and labs. Explore related networking gear at

• 24× 10/100 Mbps RJ-45 ports with Auto-Negotiation & Auto-MDI/MDIX

• Non-blocking architecture with 4.8 Gbps switching capacity for wire-speed forwarding

• Fanless metal housing for quiet, reliable operation (desktop or rack-mount)

• IEEE 802.3az Energy-Efficient Ethernet reduces power use during low traffic

• 8K MAC address table and store-and-forward switching for packet integrity

• 802.3x flow control (full-duplex) and back-pressure (half-duplex) help prevent congestion

Specifications

• Model: DES-1024D/B

• Ports: 24× 10/100 Mbps (RJ-45), Auto-MDI/MDIX

• Switching Capacity: 4.8 Gbps

• Forwarding Rate: up to ~3.57 Mpps aggregate

• MAC Address Table: 8,000 entries

• Packet Buffer: ~256 KB

• Standards: IEEE 802.3, 802.3u, 802.3x, 802.3az

• Transmission Method: Store-and-forward

• Flow Control: 802.3x (full-duplex), Back-pressure (half-duplex)

• Form Factor: Desktop or 19? rack-mount (brackets typically included)

• Cooling: Fanless (silent operation)

• Power Input: 100–240 V AC, 50/60 Hz

• Typical Dimensions: ~280 × 180 × 44 mm

• Operating Temperature: 0–40 °C

• Humidity: 10–90% (non-condensing)
